- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 2 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
SMT pick and place machine with LED DOB bulb
Description
Parameter
|
PCB Length Width |
Max:1200*500mm Min:100*100mm |
|
PCB Thickness |
0.5-5mm |
|
PCB Clamping |
Adjustable pressure pneumatic |
|
Mounting Mode |
Group picking and separate placing\separate picking and separate placing |
|
Mounting Precision |
±0.04mm |
|
Mounting Height |
<15mm (Automatic Changing) |
|
Mounting Speed |
45000 CPH |
|
Components Space |
0.2mm |
Product description
E8S-1200 model, SMT pick and place machine
- The most ideal production capacity is 45000CPH, an economical placement machine with fast production capacity.

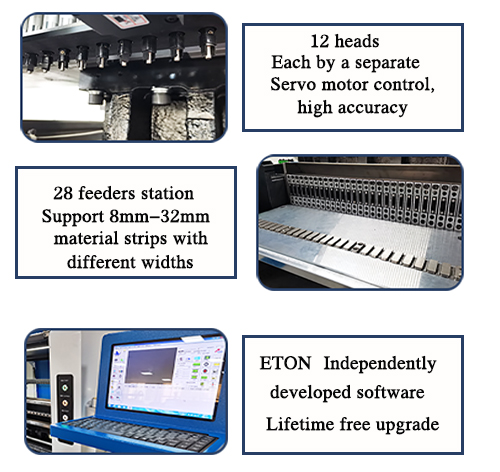

- 12 nozzles, 28 feeder seats, each nozzle is independent, controlled by an independent servo motor, with very high precision, can rotate at any angle, and mount different PCB boards
- The high-end magnetic levitation linear motor is used after the working area of the head. The use of the linear motor greatly improves the accuracy, stability and service life of the equipment.
- Minimum patch element 0402, maximum element height 15mm
- Suitable for LED lamp products, such as lamp tubes, lamp strips, panel lamps, outdoor display screens, etc.
- The optimal capacity exceeded 45000cph
Maintenance period 1 year
- One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
- Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
- Visit clients regularly. We attend the different exhibitions in different cities. every year, at the same time, we will visit local
clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
- We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
- We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service
timely with our engineers.
- According to your, needs, dedicated senior engineer will come to your factory for free install and training you how to
operate the machine.
